EIFS high tensile strength glass fiber alkaline resistant mesh for plastering and concrete

Short Description:

Glass fiber mesh fabric is made of glass fiber woven fabric and coated with polymer anti lotion. Therefore, it has good alkali resistance, flexibility and high tension resistance in the longitudinal and latitudinal directions, and can be widely used for thermal insulation, waterproof, fire prevention and crack resistance of internal and external walls of buildings.  It is made of c-glass fiber yarn (the main component is silicate and the chemical stability is good) and twisted by special organizational structure. After that, it is subjected to high-temperature heat setting treatment such as alkali resistant solution and reinforcing agent.


Product Detail

Product Tags

Glass fiber mesh fabric is made of glass fiber woven fabric and coated with polymer anti lotion. Therefore, it has good alkali resistance, flexibility and high tension resistance in the longitudinal and latitudinal directions, and can be widely used for thermal insulation, waterproof, fire prevention and crack resistance of internal and external walls of buildings. It is made of c-glass fiber yarn (the main component is silicate and the chemical stability is good) and twisted by special organizational structure. After that, it is subjected to high-temperature heat setting treatment such as alkali resistant solution and reinforcing agent.

Regular Information

Weight per square meter: 45g to 300g

Regular hole size: 5mmx5mm; 4mmx4mm, 2mmx1mm, 2.8mmx2.8mm, 10mmx10mm, etc.

Regular Roll Size:  width: 60cm to 200cm   length: 50m, 100m, 200m, etc.

Special rolls: Jumbo roll 500m, 1000m, 2000m, etc ;

Narrow jumbo rolls also available for some items

Color:  most in white, other colors also available

Sinpro Fiberglass mesh can be classified into 3 main series:

  1. 1.       Wall EIFS reinforcement

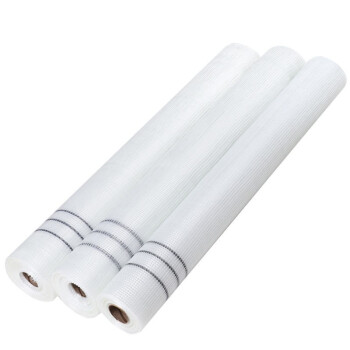

6f2041fdc7e0306e

Properties:



l  High weight with super strong tensile strength

l  Good alkaline resistance

l  Anti-corrosion



Specification

Mass

Density

Tensile Strength
(N/5cm)

Weaving
Structure

Remarks

(g/m2)

(counts/inch)

Warp

Weft

90g-5mm*5mm

90

5*5

900

900

leno

110g-10mm*10mm

110

2.5*2.5

900

900

leno

110g-5mm*5mm

110

5*5

1000

1000

leno

125g-5mm*5mm

130

5*5

1000

1200

leno

145g-5mm*5mm

145

5*5

1200

1400

leno

160g-5mm*5mm

160

5*5

1500

1800

leno

110g-10mm*10mm

110

2.5*2.5

1200

1200

leno

200g-6mm*7mm

200

4*3.5

1600

1800

leno

300g-5mm*5mm

300

5*5

2300

2500

leno



  1. 2.       Mosaic & marble backing reinforcement



Performance:

l  Light weight

l  Good alkaline resistance

l  Excellent flexibility & joint with marble

l  Special narrow size available for some items, for example, 4”/5”/6” wide & 1500m or 2000m long

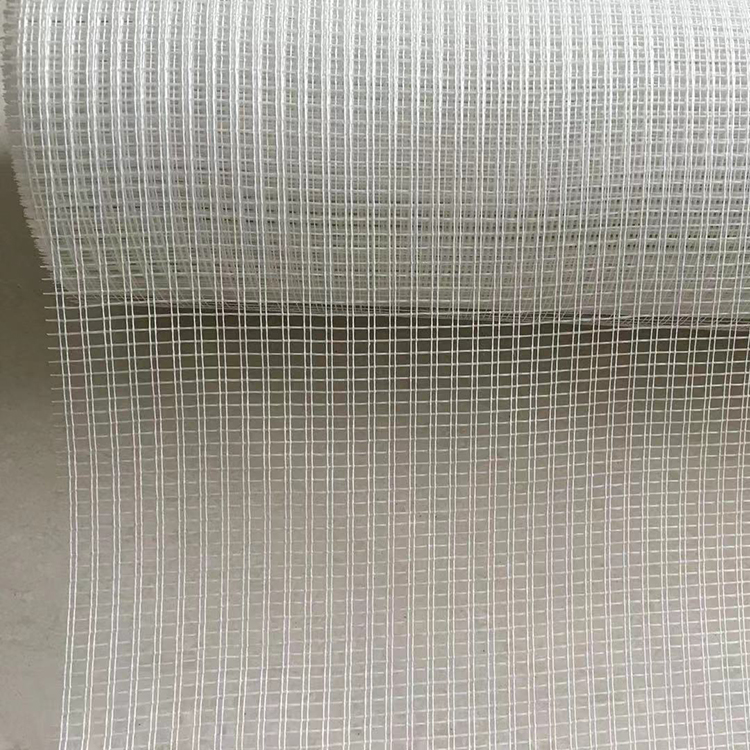

9x7 3



Specification

Mass

Density

Tensile Strength
(N/5cm)

Weaving
Structure

Remarks

(g/m2)

(counts/inch)

Warp

Weft

110g-5mm*5mm bulked yarn mesh

110

5*5

800

800

leno

30cmx300m; or 1mx100m/200m/300m etc.

75g-5mm*5mm

75

5*5

800

800

leno

0.6m-1.9m wide, 200m or 300m long

56g-3mm*3.5mm

55

9*7

600

550

leno

75g-3mm*3.5mm

75

9*7

600

800

leno









  1. 3.       Roof water-proof reinforcement

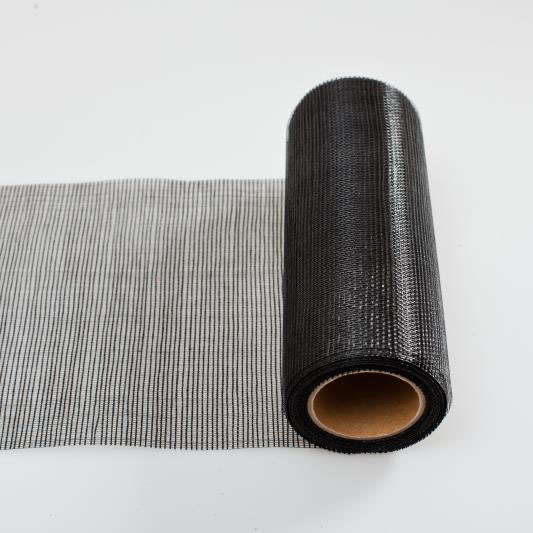

9 20x10

l  Light weight with very small mesh hole

l  Good alkaline resistance

l  Jumbo rolls available such as 1000m, 2000m, 3000m



Specification

Mass

Density

Tensile Strength
(N/5cm)

Weaving
Structure

Remarks

(g/m2)

(counts/inch)

Warp

Weft

60g-1.2mm*2.5mm

60

20*10

660

660

plain

Regular size:
1m x 100m
Jumbo rolls with 1000m or 2000m available

80g-1.2mm*1.2mm

80

20*20

800

800

plain

75g-1.2mm*2.5mm

75

20*10

800

800

plain

Black Bitumen coating
